Wildgoose Series

Battery Storage

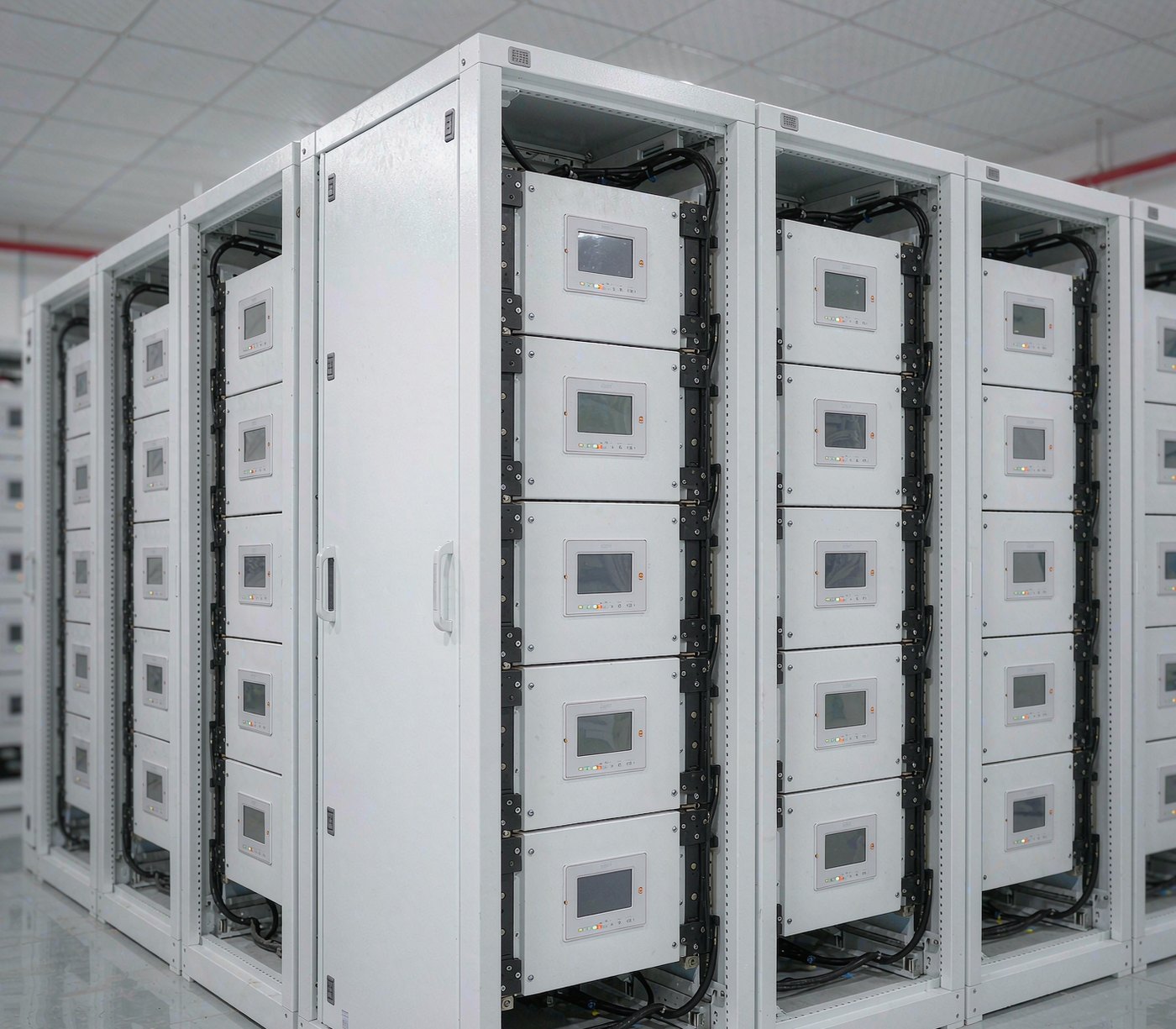

LiFePO4 energy storage: wall-mounted modules, rack-mounted packs, outdoor cabinets and containerised clusters.

WDGS-Link I WDGS-Link II WDGS-Pro-I WDGS-W

Product Photos

WDGS-Link I Series — Solar-Storage All-in-One Lithium Battery System

Indoor all-in-one: PV + storage + inverter + power distribution, 5 kWh – 112 kWh.

Model	3.5kW + 5kWh	6.6kW + 10kWh	6.6kW / 10.5kW + 16kWh	12.5kW + 32kWh	25kW + 48/64kWh	37.5kW + 64/80kWh	50kW + 96/112kWh
Inverter Output
Rated Output Power (W)	3500	6600	6600 / 10500	12500	25000	37500	50000
Max. Peak Power (W)	6000	10000	10000 / 15000	19000	38000	57000	76000
Inverter & Bypass Switching Time (ms)	10 (Typical)
EU Standard Rated AC Output (VAC)	230 (Configurable: 200, 208, 220, 240) / 400 (Single Phase / Three Phase)
US Standard Rated AC Output (VAC)	120 / 240 (Single Phase / Split Phase)
Frequency Range (Hz)	50/60
Battery
Battery Capacity (kWh)	5	10	16	30/32	48/64	64/80	96/112
Charge & Discharge Rate (C)	0.5
Charging Temperature (°C)	0~50
Discharging Temperature (°C)	-10~50
PV Charging
Number of MPPT	1	1	1/2	2	4	6	8
Max. PV Array Power (W)	4000	5500	5500 / 5500*2	6600*2	9000*4	9000*6	9000*8
Max. PV Input Current (A)	13	22	22 / 22*2	22*2	22*4	22*6	22*8
Max. Open-Circuit Voltage (VDC)	500	500	500 / 500*2	500*2	800*4	800*6	800*8
MPPT Operating Range (VDC)	120~450 (Single Phase) / 200~650 (Three Phase)
Mains Input
Input Voltage Range (VAC)	Single Phase: 170~280 (Three Phase: 295~485)
Frequency Range (Hz)	50/60±0.3
Protection & General Specifications
Protection Level	IP20
Dimensions WDH (mm)	470700600	410610811	470800610	470800881	63310902180	123610902040	123610902040
Weight (kg)	78	145	175/178	254	755/890	1008/1143	1265/1400

10.5kW / 12.5kW models support an optional three-phase inverter. All specifications are for reference only and subject to change without prior notice.

WDGS-Link II Series — Outdoor Solar-Storage All-in-One System

IP54 outdoor cabinet, 48 kWh – 112 kWh, up to 8 MPPT trackers.

Model	25kW + 48/64kWh	37.5kW + 64/80kWh	50kW + 96/112kWh
Inverter Output
Rated Output Power (W)	25000	37500	50000
Max. Peak Power (W)	38000	57000	76000
Inverter & Bypass Switching Time (ms)	10 (Typical)
EU Standard Rated AC Output (VAC)	230 (Configurable: 200, 208, 220, 240) / 400 (Single Phase / Three Phase)
US Standard Rated AC Output (VAC)	120 / 240 (Single Phase / Split Phase)
Frequency Range (Hz)	50/60
Battery
Battery Voltage Level (V)	51.2
Battery Capacity (kWh)	48/64	64/80	96/112
Charge & Discharge Rate (C)	0.5
Charging Temperature (°C)	0~50
Discharging Temperature (°C)	-10~50
PV Charging
Number of MPPT Trackers	4	6	8
Max. PV Array Power (W)	9000*4	9000*6	9000*8
Max. PV Input Current (A)	22*4	22*6	22*8
Max. Open-Circuit Voltage (VDC)	800*4	800*6	800*8
MPPT Operating Range (VDC)	200~650 (Three Phase)
Mains Input
Input Voltage Range (VAC)	Single Phase: 170~280 (Three Phase)
Frequency Range (Hz)	50/60±0.3
Protection & General Specifications
Protection Level	IP54
Dimensions WDH (mm)	63312402180	123612302040	123612302040
Weight (kg)	792/927	1053/1188	1310/1445

All data are for reference only. Specifications subject to change without prior notice.

WDGS-Pro-I Series — Low-Voltage Lithium Battery Energy Storage

24 V / 48 V / 51.2 V modules, 100 Ah – 314 Ah, up to 20 modules in parallel.

Model	24V100Ah	24V200Ah	48V100Ah	48V200Ah	48V314Ah	51.2V100Ah	51.2V200Ah	51.2V314Ah
Battery
Nominal Voltage (V)	25.6	25.6	48	48	48	51.2	51.2	51.2
Nominal Capacity (Ah)	100	200	100	200	314	100	200	314
Operating Voltage Range (V)	22.4~29.2	22.4~29.2	42~54.75	42~54.75	42~54.75	44.8~58.4	44.8~58.4	44.8~58.4
Recommended Charging Voltage (V)	27.6	27.6	51.75	51.75	51.75	55.2	55.2	55.2
Recommended Discharge Cut-off Voltage (V)	24	24	45	45	45	48	48	48
Standard Charge / Discharge Rate	0.5C
Max. Continuous Charge / Discharge Rate	0.5C
Allowable Humidity Range (%RH)	85
Storage Temperature (°C)	-20~55°C (Recommended: 10~35°C)
Charging Temperature (°C)	0~55°C / -20~55°C (Heating function optional)
Protection Level	IP20
Cooling Method	Natural Air Cooling
Cycle Life	≥6000
Communication Interface	CAN / RS485
Capacity Expansion	Max. 20 modules in parallel (48 modules for special configuration)
Dimensions DWH (mm)	635375156	635375156	635375156	660400245	972480245	635375156	660400245	972480245
Weight (kg)	34	50	48	94	145	50	98	148

All data above are for reference only, specifications subject to change without prior notice.

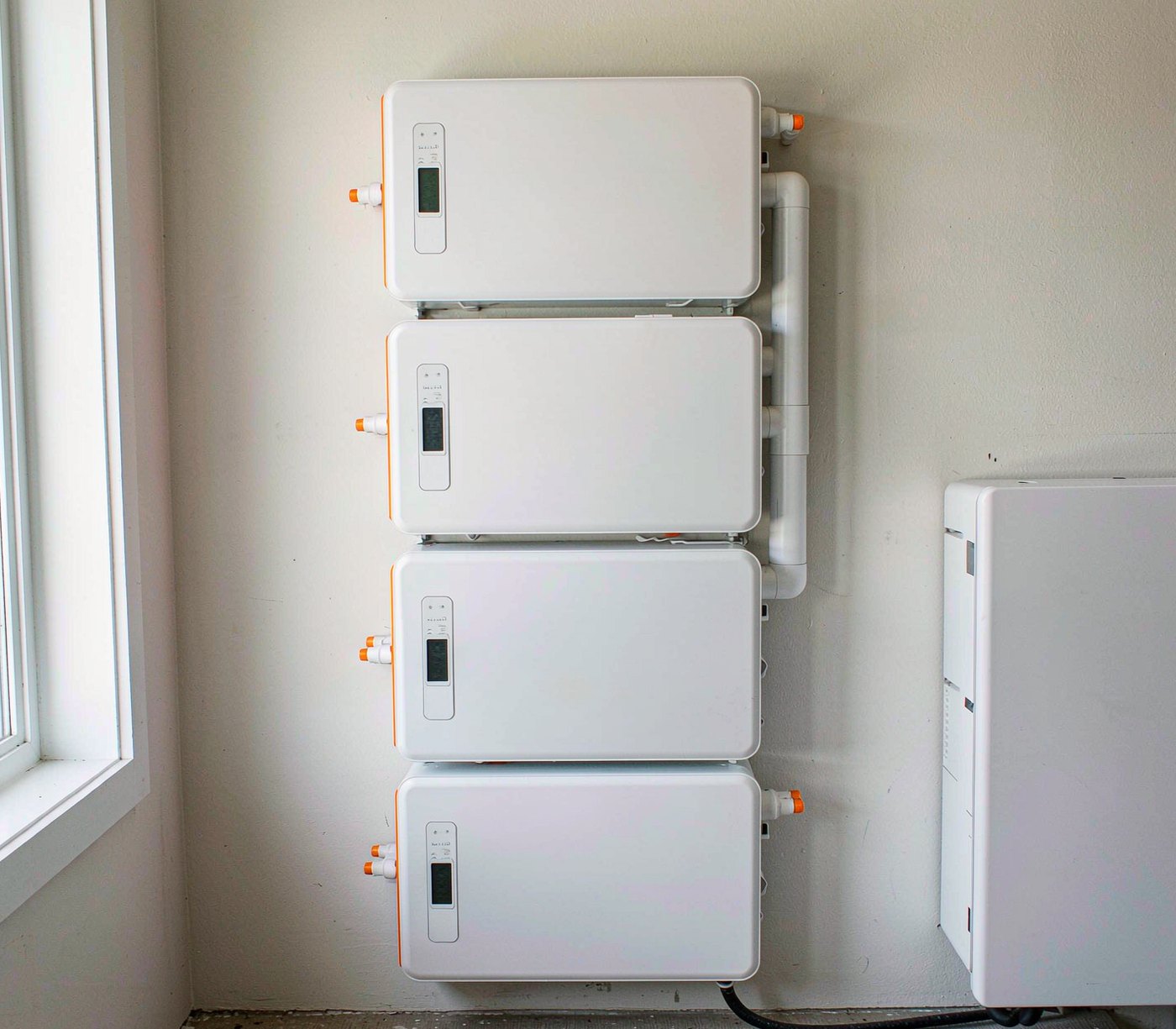

WDGS-W Series — Wall-mounted LFP Battery

26.5 V / 48 V / 51.2 V wall-mounted LiFePO₄ modules, 100 Ah / 200 Ah.

Model	WDGS24-100W	WDGS24-200W	WDGS48-100W	WDGS48-200W	WDGS51.2-100W	WDGS51.2-200W
Battery
Nominal Voltage (V)	26.5	25.6	48	48	48	51.2
Cell Specification (Ah)	100
Nominal Capacity (Ah)	100	200	100	200	100	200
Nominal Energy (kWh)	2.56	5.12	4.8	9.6	5.12	10.24
Operating Voltage Range (V)	22.4~29.2	22.4~29.2	42~54.75	42~54.75	44.8~58.4	44.8~58.4
Recommended Charging Voltage (V)	27.6	27.6	51.75	51.75	55.2	55.2
Recommended Discharge Cut-off Voltage (V)	24	24	45	45	48	48
Standard Charge / Discharge Rate	0.5C
Max. Continuous Charge / Discharge Rate	1C (Customizable)
Allowable Humidity Range (%RH)	85
Storage Temperature (°C)	-20~55°C (Recommended: 10~35°C)
Charging Temperature (°C)	0~55
Protection Level	IP20
Cooling Method	Natural Air Cooling / Intelligent Fan
Cycle Life	6000+ cycles @ 80% DOD
Dimensions DWH (mm)	687450186	687450186	687450186	682465276	687450186	682465276
Weight (kg)	28	49	46	93	49	96

All data are for reference only. Specifications subject to change without prior notice.
